Universal AC input/full range(175-277VAC)

Built in active PFC function

Efficiency up to 93%, super thin and small size.

Protections:short circuit/over load/over voltage/over temperature

1P67 design for indoor or outdoor installation

It can be used in dry, wet and rainy environment

Cooling by free air, high reliability

Up to 50000-hour life time

Suitable for internal lights application for I /I/I.

Widely used in LED lighting and IT equipment

Do not use it to full capacity, leave about 10% to 15%

Technical information:

Input Voltage: AC 170V - 230V
Output Voltage: DC 12V
constant Voltage
IP rating: IP 67 Waterproof
Warranty: 5 years

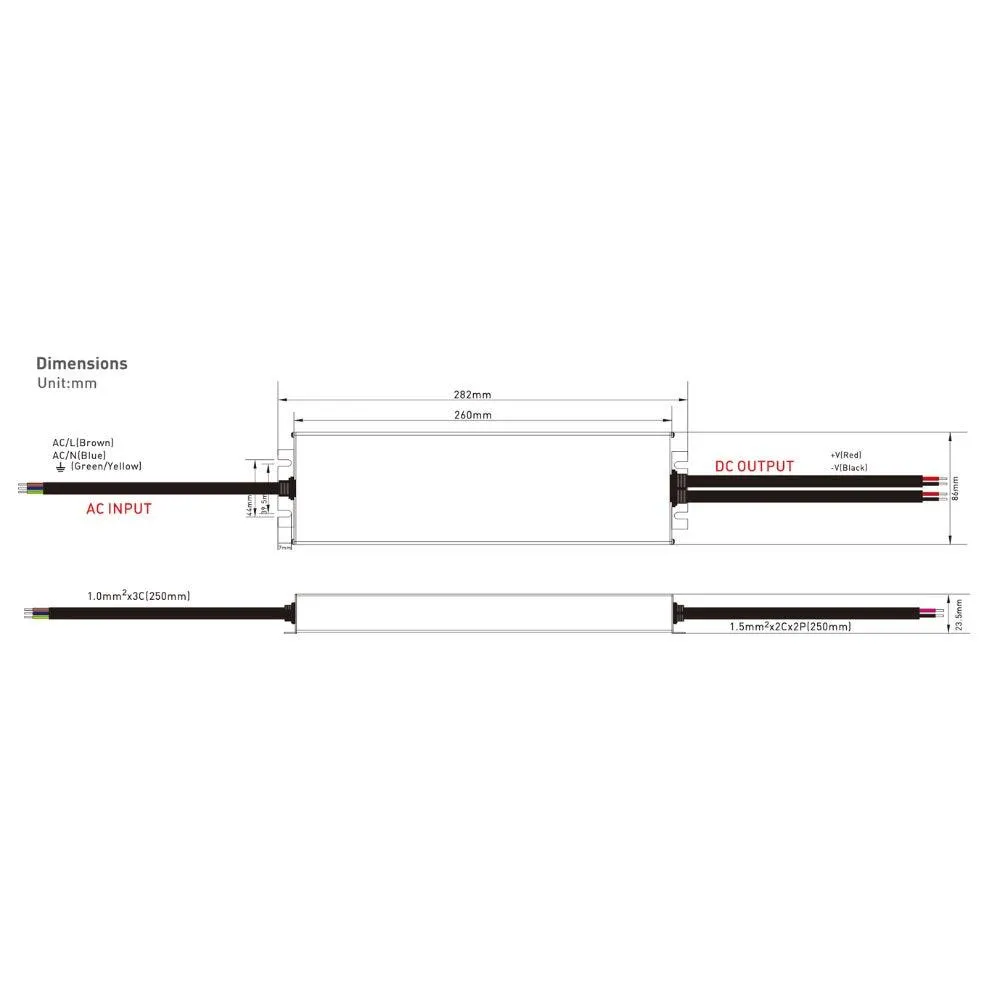

Dimensions:

100W - 202x48x19mm(LxWxH)
200W - 242x67x22.8mm(LxWxH)
250W - 242x67x22.8mm(LxWxH)
300W - 282x86x23.5mm(LxWxH)
350W - 282x86x23.5mm(LxWxH)
400W - 282x86x23.5mm(LxWxH)
500W - 282x86x23.5mm(LxWxH)

Product Specification:
